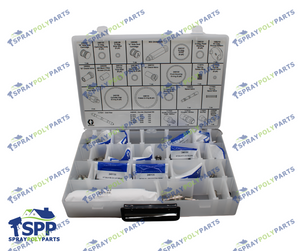

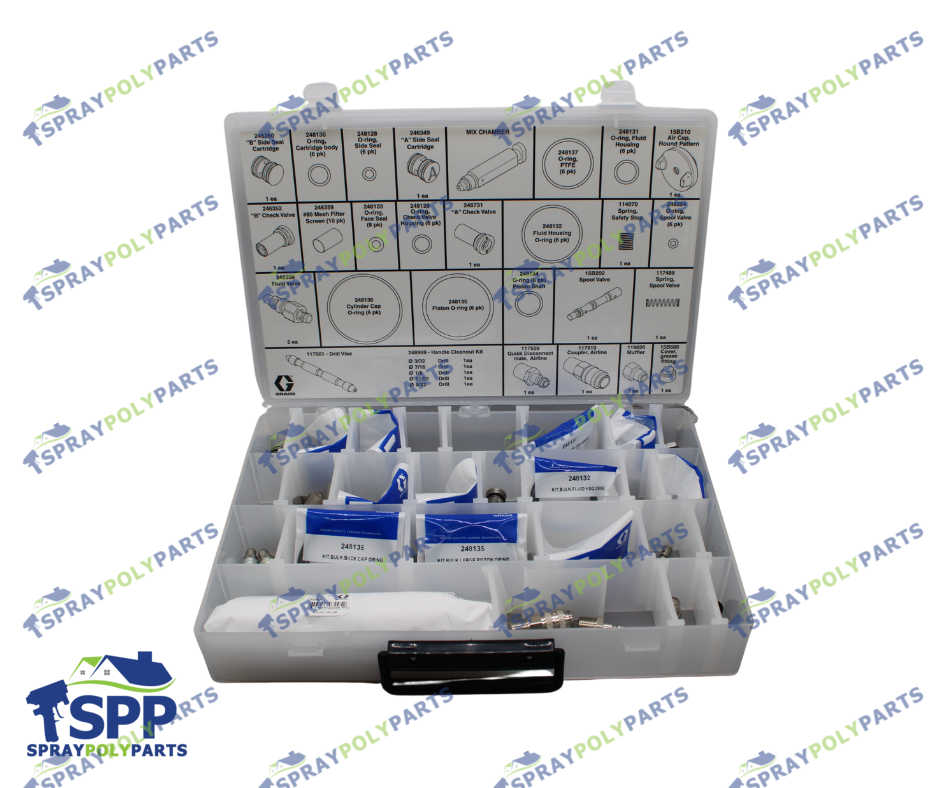

Fusion AP Spray Gun Parts Kit

$1,285.00
SKU:
24W849
Quantity:

Product Description

Keep this kit in your spray rig and eliminate unnecessary downtime. Improve uptime with convenient Graco Gun Parts Kits. You’ll always have the proper wear parts on hand for your Fusion Gun. Kits contain everything you need to rebuild and repair your guns: side seal cartridges, mix chambers, O-rings, air caps, check valves, mesh filters, fluid valves and more.

• Kits offer a 10% savings versus buying parts individually

• Compartments are clearly labeled with part numbers making reordering a breeze


Kit Includes:
• 1 – 246349, A side seal cartridge

• 1 – 246350, B side seal cartridge

• 1 – 15B210, air cap, round pattern

• 1 – 246731, A side check valve

• 1 – 246352, B side check valve

• 1 – 114070, safety stop spring

• 1 – 15B202, spool valve

• 1 – 117485, spool valve spring

• 1 – 117509, quick disconnect airline (male)

• 1 – 117510, coupler for airline

• 1 – 119626, muffler

• 1 – 15B689, grease fitting cover

• 1 – 117661, drill vise

• 1 – 256526, handle cleanout kit

• 2 – 246356, fluid valve

• 6 pack – 248130, O-rings for cartridge body

• 6 pack – 248128, O-rings for side seals

• 6 pack – 248137, O-rings (PTFE)

• 6 pack – 248131, O-rings for fluid housing (small)

• 6 pack – 248132, O-rings for fluid housing (large)

• 6 pack – 248133, O-rings for face seal

• 6 pack – 248129, O-rings for check valve housing

• 6 pack – 246354, O-rings for spool valve

• 6 pack – 248136, O-rings for cylinder cap

• 6 pack – 248135, O-rings for piston

• 6 pack – 248134, O-rings for piston shaft

• 10 pack – 246359, #80 mesh filter screen Open compartment for mix chambers
